Runze Fluid PEEK 암나사 벌크헤드 유니온
Runze Fluid

PEEK 암나사 벌크헤드 유니온

Runze Fluid PEEK Female Thread Bulkhead Union
패널 관통 M10×1 · PPS 너트 + PP 회전방지 클립 · 컬러 구분 · 70규격

PEEK 암나사 벌크헤드 유니온은 장비 하우징을 관통해 내부 배관을 외부로 잇는 피팅으로, 컬러 회전방지 클립으로 유로를 색으로 구분합니다.

카탈로그 PDF회원
#RunzeFluid#실험장비카탈로그#PEEK벌크헤드#패널관통#유로구분
← Runze Fluid 전체

특징

사양

나사 규격 (Thread)1/4-28 UNF 평저 (암) · M10×1 (수, 관통)

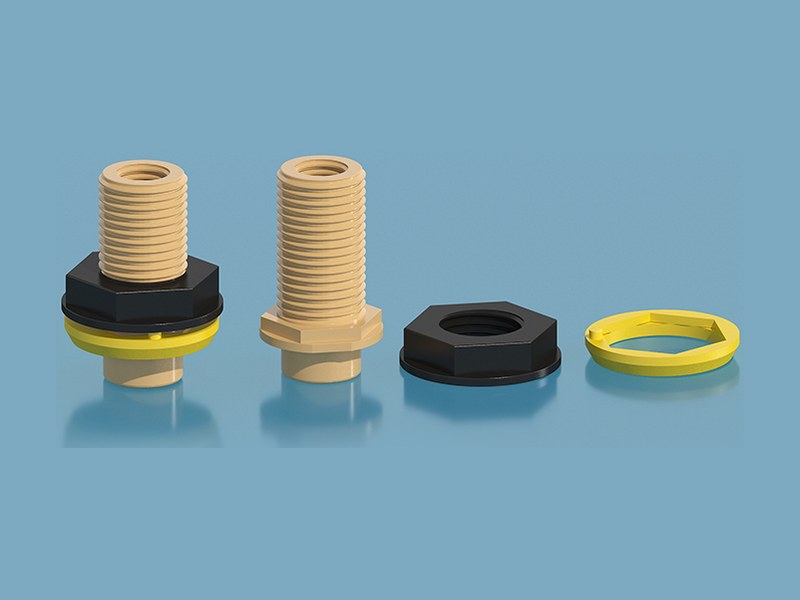

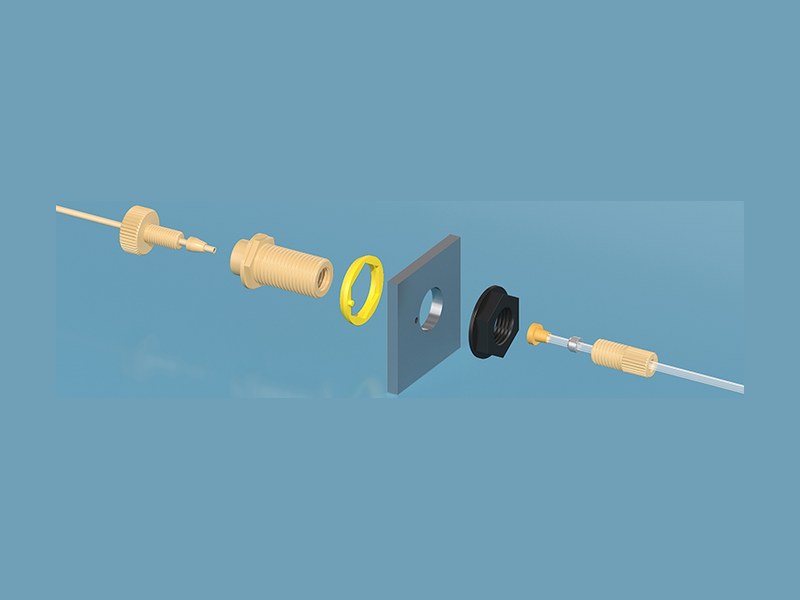

구성 (Assembly)PEEK 본체 + PPS 너트 + PP 회전방지 클립 3피스
재질 (Material)PEEK 내추럴 · PPS 블랙 · PP 컬러 클립
사용 온도 (Temperature)-100℃ ~ +250℃ 장기 사용
유로 직경 (Flow path diameter)0.8 / 1.25 mm
습부 체적 (Wetted liquid volume)4 mm³ (0.8 mm) · 9.82 mm³ (1.25 mm)
설치 (Installation)패널 사전 천공 필요
수록 모델 (Models)63종
가격 조건VAT 별도 · 국제 배송료 70,000원 (주문당 1회)

※ 소액 품목은 제조사 수량단가(priceTiers)를 적용한 팩 단위로 판매합니다. 팩 수량은 주문정보의 모델명 뒤 ×수량으로 표기됩니다.

관련 자료 · 회원 열람: 재질 인증서 (PDF) · 성능시험 보고서 (PDF)

주문 코드 (Order code)

주문 코드형식나사 규격재질
NC-28-K(1.25) * M10*1-S * C12-P red 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P dark 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P yellow 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P green 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P beige blue 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P dark blue 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(1.25) * M10*1-S * C12-P purple 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P red 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P dark 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P yellow 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P green 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P beige blue 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P dark blue 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(2.0) * M10*1-S * C12-P purple 2.0mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P red 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P dark 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P yellow 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-Pgrass green 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P beige blue 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P dark blue 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(0.8) * M10*1-S * C12-P purple 0.8mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P red 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P dark 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P yellow 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P green 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P beige blue 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P dark blue 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-32-K(1.25) * M10*1-S * C12-P purple 1.25mm Flow Passage Diameter ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P red ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P dark ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P yellow ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P green ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P beige blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P dark blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(0.8) * M10*1-S * C12-P purple ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P red ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P dark ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P yellow ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P green ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P beige blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P dark blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T28&B32-K(1.25) * M10*1-S * C12-P purple ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P red ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P dark ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P yellow ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P green ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P beige blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P dark blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(0.8) * M10*1-S * C12-P purple ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P red ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P dark ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P yellow ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P green ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P beige blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P dark blue ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-T32&B28-K(1.25) * M10*1-S * C12-P purple ×10PEEK female threaded feed-through fittings · 10세트입 팩——
NC-28-K(0.8) * M10*1-S * C12-P red 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP red
NC-28-K(0.8) * M10*1-S * C12-P dark 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP deep dark
NC-28-K(0.8) * M10*1-S * C12-P yellow 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP lemon yellow
NC-28-K(0.8) * M10*1-S * C12-P green 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP lemon yellow
NC-28-K(0.8) * M10*1-S * C12-P beige blue 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP beige blue
NC-28-K(0.8) * M10*1-S * C12-P dark blue 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP dark blue
NC-28-K(0.8) * M10*1-S * C12-P purple 0.8mm Flow Passage DiameterPEEK 암나사 관통 피팅1/4-28UNFPEEK natural*PPS black*PP deep purple

모든 규격 공통 — 적용 튜브 —

주문 코드는 제조사 카탈로그 표기 그대로입니다. 재질 · 나사 규격 · 적용 튜브를 확인해 고르십시오.

제조사 상세 규격 (Manufacturer specs)

SKU모델 번호 (Model No.)나사 (Thread)Flow Passage DiameterWetted liquid volum재질 (Material)
NC-28-K
1011070017NC-28-K(1.25) * M10*1-S * C12-P red1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP red
1011070018NC-28-K(1.25) * M10*1-S * C12-P deep dark1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP deep dark
1011070019NC-28-K(1.25) * M10*1-S * C12-P lemon yellow1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP lemon yellow
1011070020NC-28-K(1.25) * M10*1-S * C12-P grass green1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP grass green
1011070021NC-28-K(1.25) * M10*1-S * C12-P beige blue1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP beige blue
1011070022NC-28-K(1.25) * M10*1-S * C12-P dark blue1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP dark blue
1011070023NC-28-K(1.25) * M10*1-S * C12-P deep purple1/4-28UNF flflat bottom1.25mm9.82MM3PEEK natural*PPS black*PP deep purple
1011070024NC-28-K(2.0) * M10*1-S * C12-P red1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP red
1011070025NC-28-K(2.0) * M10*1-S * C12-P deep dark1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP deep dark
1011070026NC-28-K(2.0) * M10*1-S * C12-P lemon yellow1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP lemon yellow
1011070027NC-28-K(2.0) * M10*1-S * C12-P grass green1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP grass green
1011070028NC-28-K(2.0) * M10*1-S * C12-P beige blue1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP beige blue
1011070029NC-28-K(2.0) * M10*1-S * C12-P dark blue1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP dark blue
1011070030NC-28-K(2.0) * M10*1-S * C12-P deep purple1/4-28UNF flflat bottom2.0mm25.13mm3PEEK natural*PPS black*PP deep purple
NC-32-K
1011070031NC-32-K(0.8) * M10*1-S * C12-P red10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP red
1011070032NC-32-K(0.8) * M10*1-S * C12-P deep dark10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP deep dark
1011070033NC-32-K(0.8) * M10*1-S * C12-P lemon yellow10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP lemon yellow
1011070034NC-32-K(0.8) * M10*1-S * C12-P grass green10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP grass green
1011070035NC-32-K(0.8) * M10*1-S * C12-P beige blue10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP beige blue
1011070036NC-32-K(0.8) * M10*1-S * C12-P dark blue10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP dark blue
1011070037NC-32-K(0.8) * M10*1-S * C12-P deep purple10-32UNF conical0.8mm6.97mm3PEEK natural*PPS black*PP deep purple
1011070038NC-32-K(1.25) * M10*1-S * C12-P red10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP red
1011070039NC-32-K(1.25) * M10*1-S * C12-P deep dark10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP deep dark
1011070040NC-32-K(1.25) * M10*1-S * C12-P lemon yellow10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP lemon yellow
1011070041NC-32-K(1.25) * M10*1-S * C12-P grass green10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP grass green
1011070042NC-32-K(1.25) * M10*1-S * C12-P beige blue10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP beige blue
1011070043NC-32-K(1.25) * M10*1-S * C12-P dark blue10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP dark blue
1011070044NC-32-K(1.25) * M10*1-S * C12-P deep purple10-32UNF conical1.25mm8.33mm3PEEK natural*PPS black*PP deep purple
NC-T28&B32-K
1011070045NC-T28&B32-K(0.8) * M10*1-S * C12-P red1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP red
1011070046NC-T28&B32-K(0.8) * M10*1-S * C12-P deep dark1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP deep dark
1011070047NC-T28&B32-K(0.8) * M10*1-S * C12-P lemon yellow1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP lemon yellow
1011070048NC-T28&B32-K(0.8) * M10*1-S * C12-P grass green1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP grass green
1011070049NC-T28&B32-K(0.8) * M10*1-S * C12-P beige blue1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP beige blue
1011070050NC-T28&B32-K(0.8) * M10*1-S * C12-P dark blue1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP dark blue
1011070051NC-T28&B32-K(0.8) * M10*1-S * C12-P deep purple1/4-28UNF flflat bottom & 10-32UNF conical0.8mm5.5mm3PEEK natural*PPS black*PP deep purple
1011070052NC-T28&B32-K(1.25) * M10*1-S * C12-P red1/4-28UNF flflat bottom & 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP red
1011070053NC-T28&B32-K(1.25) * M10*1-S * C12-P deep dark1/4-28UNF flflat bottom & 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP deep dark
1011070054NC-T28&B32-K(1.25) * M10*1-S * C12-P lemon yellow1/4-28UNF flflat bottom & 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP lemon yellow
1011070055NC-T28&B32-K(1.25) * M10*1-S * C12-P grass green1/4-28UNF flflat bottom & 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP grass green
1011070056NC-T28&B32-K(1.25) * M10*1-S * C12-P beige blue1/4-28UNF flflat bottom& 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP beige blue
1011070057NC-T28&B32-K(1.25) * M10*1-S * C12-P dark blue1/4-28UNF flflat bottom& 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP dark blue
1011070058NC-T28&B32-K(1.25) * M10*1-S * C12-P deep purple1/4-28UNF flflat bottom & 10-32UNF conical1.25mm9.08mm3PEEK natural*PPS black*PP deep purple
NC-T28&B32-K
1011070059NC-T32&B28-K(0.8) * M10*1-S * C12-P red10-32UNF conical& 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP red
1011070060NC-T32&B28-K(0.8) * M10*1-S * C12-P deep dark10-32UNF conical& 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP deep dark
1011070061NC-T32&B28-K(0.8) * M10*1-S * C12-P lemon yellow10-32UNF conical & 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP lemon yellow
1011070062NC-T32&B28-K(0.8) * M10*1-S * C12-P grass green10-32UNF conical & 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP grass green
1011070063NC-T32&B28-K(0.8) * M10*1-S * C12-P beige blue10-32UNF conical & 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP beige blue
1011070064NC-T32&B28-K(0.8) * M10*1-S * C12-P dark blue10-32UNF conical & 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP dark blue
1011070065NC-T32&B28-K(0.8) * M10*1-S * C12-P deep purple10-32UNF conical & 1/4-28UNF flflat bottom0.8mm5.5mm3PEEK natural*PPS black*PP deep purple
1011070066NC-T32&B28-K(1.25) * M10*1-S * C12-P red10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP red
1011070067NC-T32&B28-K(1.25) * M10*1-S * C12-P deep dark10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP deep dark
1011070068NC-T32&B28-K(1.25) * M10*1-S * C12-P lemon yellow10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP lemon yellow
1011070069NC-T32&B28-K(1.25) * M10*1-S * C12-P grass green10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP grass green
1011070070NC-T32&B28-K(1.25) * M10*1-S * C12-P beige blue10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP beige blue
1011070071NC-T32&B28-K(1.25) * M10*1-S * C12-P dark blue10-32UNF conical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP dark blue
1011070072NC-T32&B28-K(1.25) * M10*1-S * C12-P deep purple10-32UNFconical & 1/4-28UNF flflat bottom1.25mm9.08mm3PEEK natural*PPS black*PP deep purple

유로 직경 0.8 mm 계열

SKU모델 (Model)나사 (Thread)Flow path DiameterWetted liquid volume재질 (Material)
NC-28-K
1011070010NC-28-K(0.8) * M10*1-S * C12-P red1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP red
1011070011NC-28-K(0.8) * M10*1-S * C12-P deep dark1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP deep dark
1011070012NC-28-K(0.8) * M10*1-S * C12-P lemon yellow1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP lemon yellow
1011070013NC-28-K(0.8) * M10*1-S * C12-P grass green1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP grass yreen
1011070014NC-28-K(0.8) * M10*1-S * C12-P beige blue1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP beige blue
1011070015NC-28-K(0.8) * M10*1-S * C12-P dark blue1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP dark blue
1011070016NC-28-K(0.8) * M10*1-S * C12-P deep purple1/4-28UNF flflat bottom0.8mm4mm3PEEK natural*PPS black*PP deep purple

제품 상세

제조사 상세 자료 (1/4)
제조사 상세 자료 (1/4)
제조사 상세 자료 (2/4)
제조사 상세 자료 (2/4)
제조사 상세 자료 (3/4)
제조사 상세 자료 (3/4)

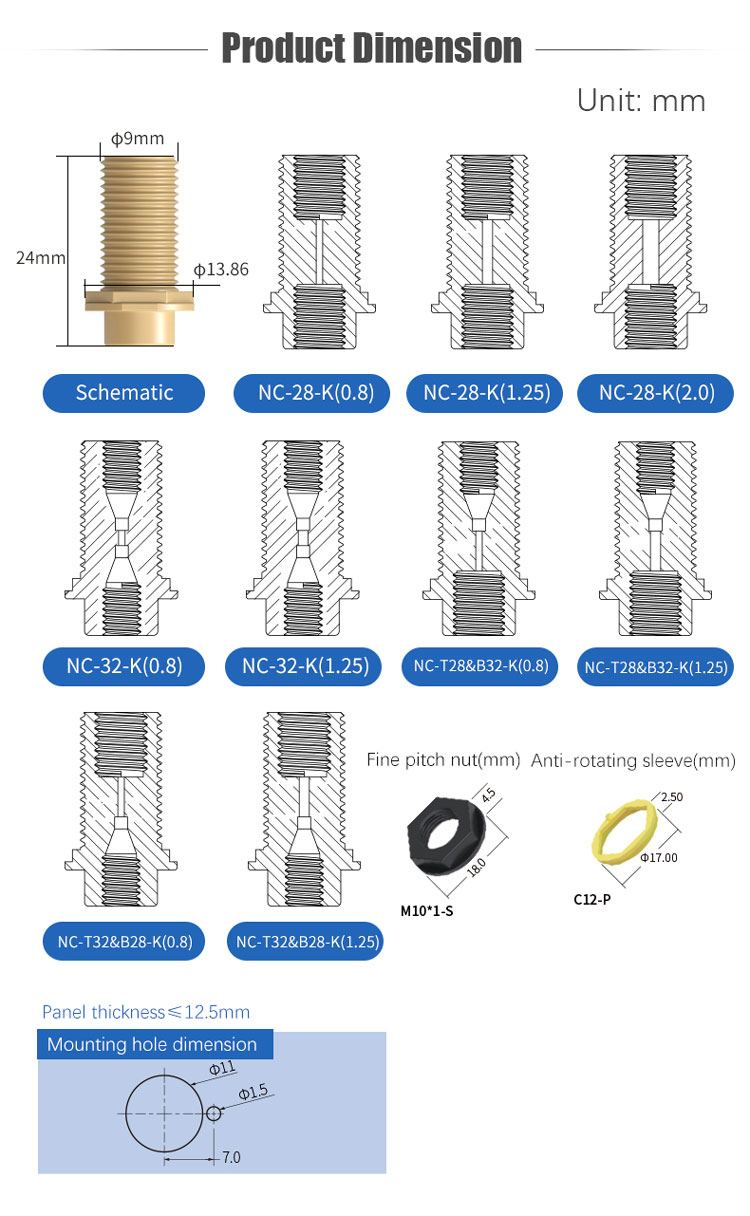

제조사 상세 자료 (4/4)
제조사 상세 자료 (4/4)

유체 연결: 전 제품 통합 카탈로그 · Runze Fluid 전체 · 견적·기술 문의 · 저압 벌크헤드 유니온 · PEEK 암나사 직선 어댑터

문의·상담070-8983-2600평일 상담 · 견적/기술 문의 환영
채팅문의QR 스캔 · 채널톡

PEEK 암나사 벌크헤드 유니온 FAQ

설치패널에 구멍을 뚫어야 하나요?

네. M10×1 관통형이라 설치 전에 패널을 미리 천공해야 합니다.

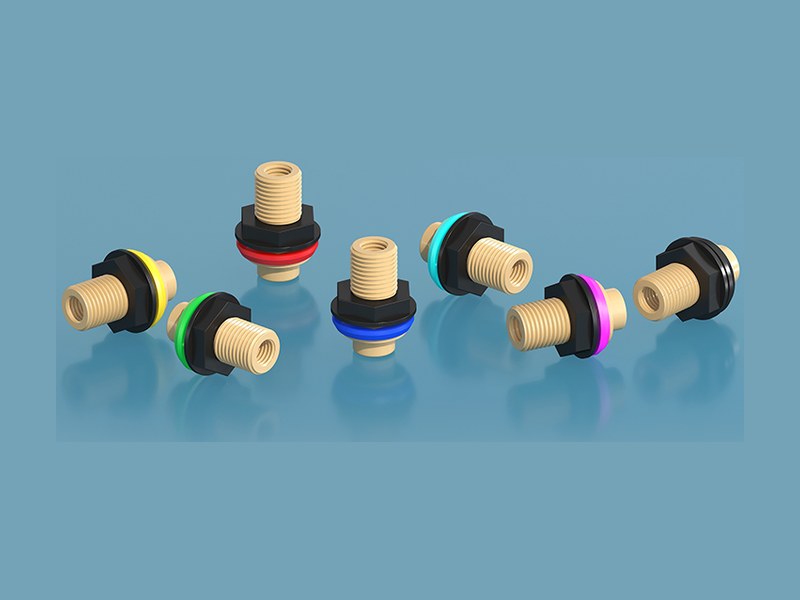

구분클립 색상은 왜 여러 가지인가요?

배관이 많은 장비에서 어느 유로인지 색으로 바로 구분하기 위해서입니다.

구성어떤 부품으로 되어 있나요?

PEEK 본체, PPS 블랙 너트, PP 컬러 회전방지 클립 3피스입니다.

사양유로 직경과 습부 체적은요?

0.8 mm는 4 mm³, 1.25 mm는 9.82 mm³입니다.
